Overview

Model No.: 10

Brand: YUYUAN

Place of Origin: China

Specifications

Equipment specification :

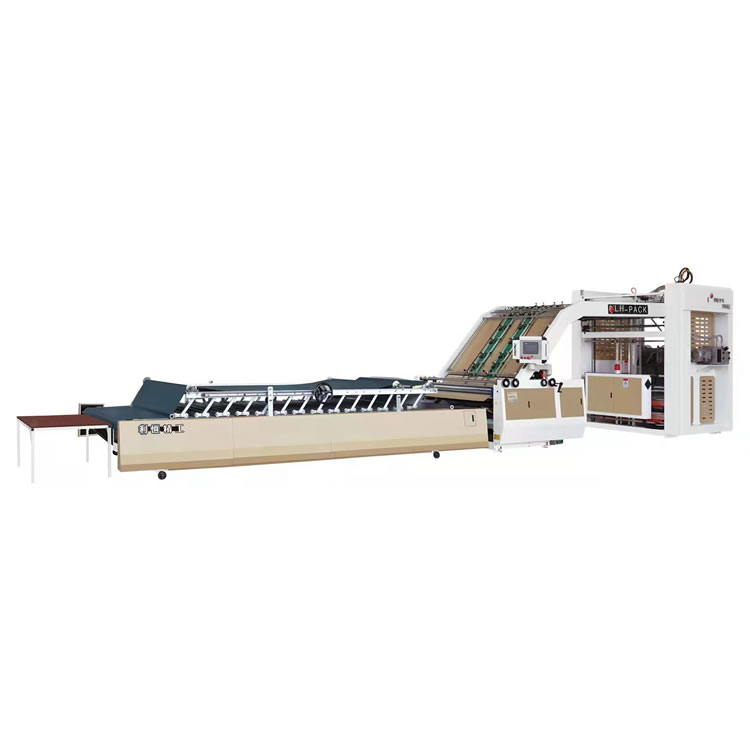

Features： Our company manufacture professionally LH-S series of Automatic Flute Laminator used for printing and packaging industry on the cardboard to cardboard, corrugated to cardboard for fluting, the application of corrugated are A, B, C, D, E, F, N treng , three, five, seven story can work, fluted a good flatness of the paper, high accuracy. Well-known manufacturers of genuine products are adopted in the main parts of machine, It is long life, good stability. The world's well-known brands products are adopted in electrical parts, imported bearings is adopted in the key parts, to ensure the stability of the whole performance. Machine with good stability and accuracy of the mounted, easy use, low wear and tear, saving time, the advantages of easy maintenance

Specifications：

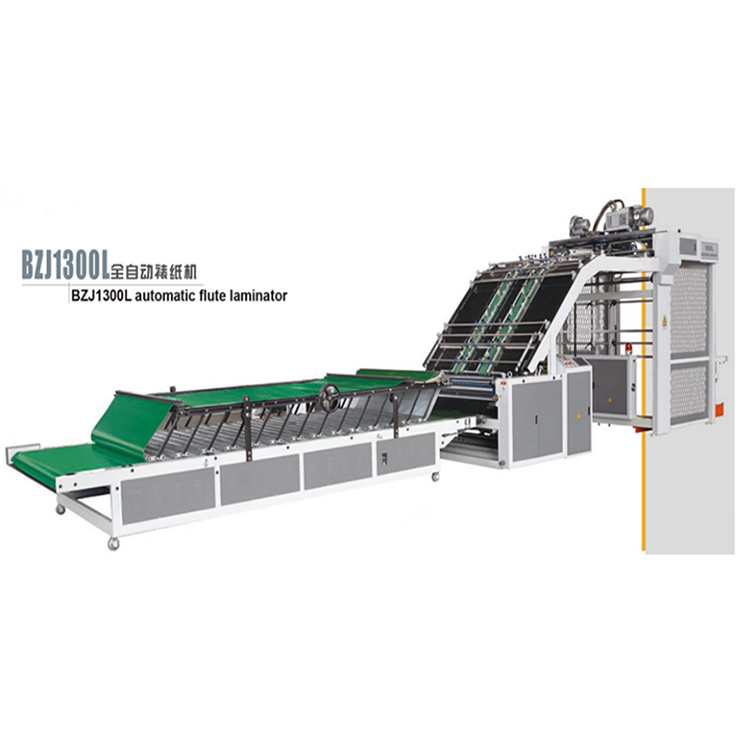

Model	BZJ1300L	BZJ1450L	BZJ1650L
Max sheet size	1300*1300mm	1450*1300mm	1600*1300mm
Min sheet size	400*400mm	400*400mm	400*400mm
Top paper	150-450g/㎡	200-450g/㎡	200-450g/㎡
Max speed	6000sheets/h	6000sheets/h	6000sheets/h
Over size	1200022502655mm	1200024002655	1200025502655mm
Power	13kw	13kw	13kw
Bottom	A、B、C、E、F corrugated cardboard

Automatic Flute Laminator Parts Introduction：

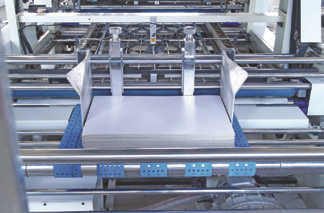

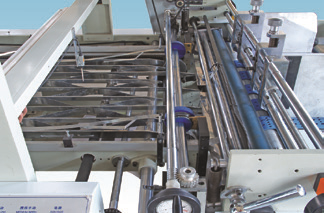

Surface Paper Feeding Part The Feeding device made in Taiwan ensures that the feeding of surface paper is smooth and accurate.	Surface Paper Conveying Part Unique central gear made of wear-resistant PU rubber cooperating with conveying belt ensures stability and smoothness of conveying, which is adaptive for different sheets of different thickness without any abrasion for the printing surface.	Alignment System of Surface Paper Synchronous sheet pusher particularly designed ensures that the surface paper and bottom paper enter the pasting part at the same time. It can be fine adjusted during the course of working.

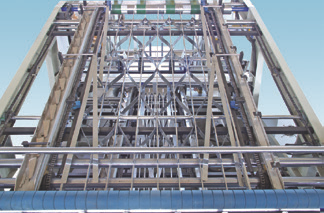

Bottom Paper Feeding Part Imported suction feeding device with punching belts ensures stable feeding at high speed. It is suitable for cardboard heavier than 300g/m2, corruggated boards of A,B,C,D,E,F,N and three, five or seven layers.	Bottom Paper Conveying Part Synchronous sheet pusher particularly designed ensures the stable and accurate conveying of cardboards heavier than 300g/m2, and corrugated boards of A,B,C,D,E,F,N and three, five or seven layers.	Driving System Imported wear-resistance timing belt, belt wheels cooperating with sheet pusher, adjustment system and alignment mechanism ensures a paste tolerance of ±1.5mm and reduction of torn sheet.

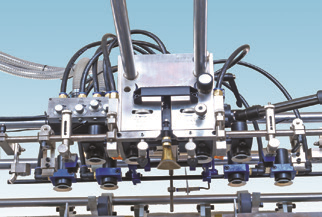

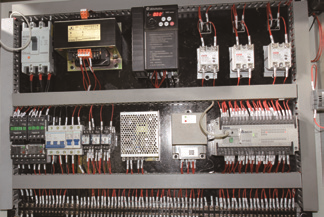

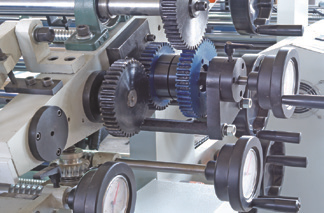

Adjustment System Fine regulator completely manufactured in Japan is adopted, which actualizes the adjustment of pasting tolerance during the course of working with high speed, thus improving the working efficiency.	Electrical Control Part All the electrical power adopted the world renowned brands, steady and variable, frequency speed governing, lower noise and energy conservation.	Adding Glue and Gumming System Automatic adding glue system detects by electrically operated fluid controller and adds gule automatically during the course of pasting. The thickness of glue is adjustable according to paper. Recycling system of glue avoids a waste of glue and swinging glue, and ensures accurate and tidy laminating.Unique applied anilox roller glues evenly, even suitable for cardboards and cardboards.

Related Products

Packaging and delivery

Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.

Company Profile

00:03

02:00

HEBEI YUYUAN Packaging machinery co.,ltd
We are one of the biggest manufacturers for corrugated packaging machinery in North of China. Our main products include completecorrugated paperboard production line, flexo printer slotter die cutter stacker machine, automatic folder gluer and other cartonmachines.

Our company owes perfect technology and we can design machines according to our customers' requirement. We have perfectquality guarantee system .Our engineers have rich experience of installation and serve for our customers all over the world. The Complete Corrugator Line, Hydraulic Mill Roll Stand, High Speed Single Facer, N. C Cut Off Machine , N.C Slitter Scorer Machine, Folder Gluer Machine, Rotary Slotter Mahcine and Flexo Printer Machine be exported to more than twenty different countries.
We sincerely cooperate with all the customers and do our best to meet all customers' requirements with our best products and service.

customers

Certifications

FAQ

1.Q:Are you a manufacturer?
A: Yes ,we make all the machines related to corrugated cardboard and carton box.

2. Q:Do you have export licence ?
A: Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?
A: We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?
A: Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high speed train .

5. Q:About quality control and delivery?
A: Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?
A: Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the machine-ship the machine

7. Q: Do you have any working machine for us to visit?
A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?
A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?
A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
