Overview

Model No.: 7

Brand: YUYUAN

Place of Origin: China

Specifications

Semi-auto Corrugated Carton flexo Printer Slotter/Corrugated Carton Making Machine

Function introduction
★Printing Slotting Machine adopts sustainable chain feeding paper, and the counter records production quantity.
★ Each unit is equipped with a sudden stop switch, when in need of stopping to use it.
★ The machine adopts rubber supply ink roll system.
★ The machine adopts printing phase electric digital control.
★ Transverse phase, mechanical manual operate, control range is 12mm.
★ Slotting tool apron manual three points synchronous move transversely structure.
★ Transmission structure adopts double oil pump circulating lubrication.

Product Paramenters

product series	1200 series	1400 series	1600 series	2500 series
technical parameter	12002200 12002400 1200*2800	1400×2400 14002800 14003200	16002400 16002800 1600*3200	25002400 25002800 2500*3200
machine design speed	80	80	70	60
machine feeding speed	60-70	50-60	50-60	30-50
max.feeding size	12002100 12002300 1200*2700	14002300 14002700 1400*3100	16002300 16002700 1600*3100	25002300 25002700 200*3100
min.feeding size	320*650	320*650	480*750	550*750
max.printing size	12001900 12002100 1200*2500	14002100 14002500 1400*2900	16002100 16002500 1600*2900	25002100 25002500 2500*2900
standard printing plate thickness	7.2	7.2	7.2	7.2
metal supply ink	250-300	250-300	250-300	250-300
supply ink	rubber shaft	rubber shaft	rubber shaft	rubber shaft
feeding method	chain wheel feeding	chain wheel feeding	chain wheel feeding	chain wheel feeding
printing roll transverse	±6	±6	±6	±6
printing roller axial adjustment	360	360	360	360
min.slotting distance positive	170170170*170	170170170*170	170170170*170	170170170*170
min.slotting distance reverse	34080340*80	34080340*80	34080340*80	34080340*80
max.slotting depth	300	350	400	590

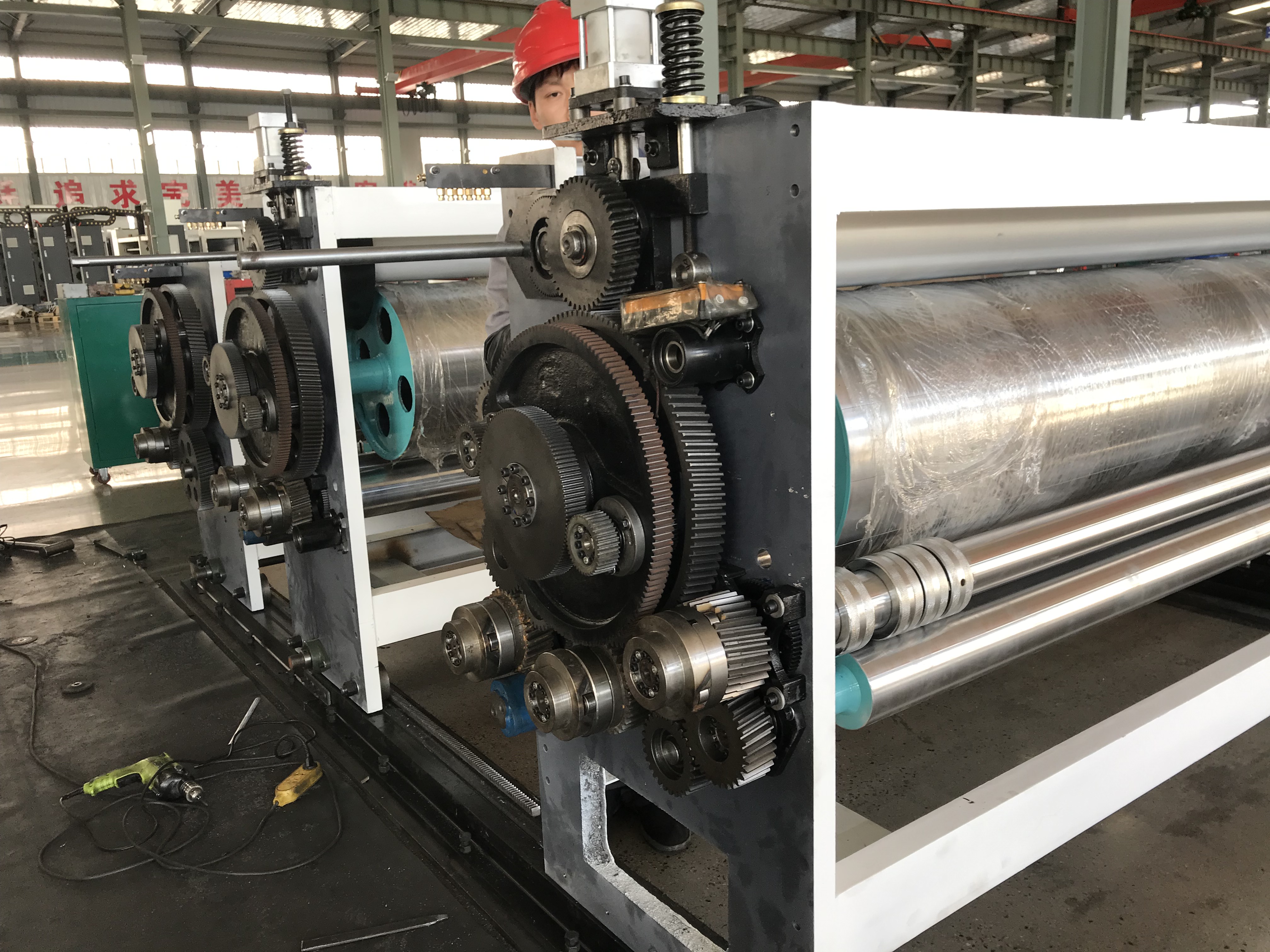

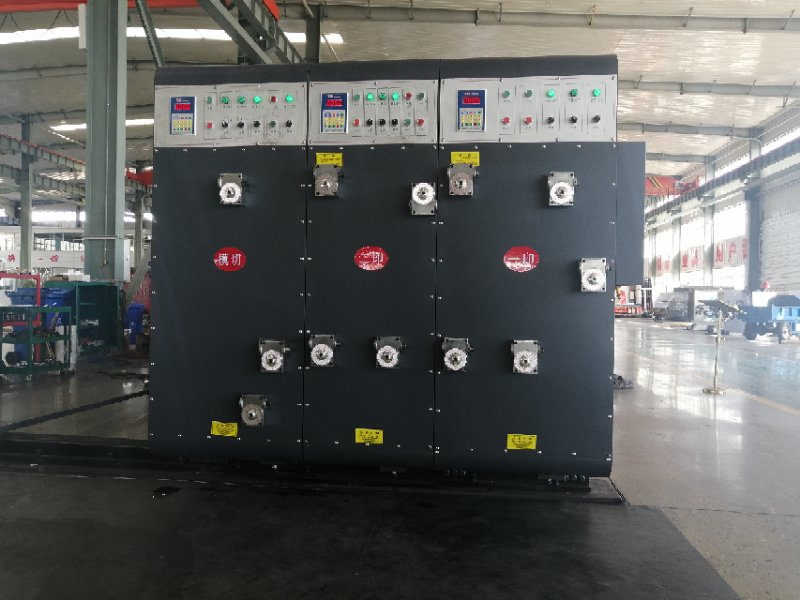

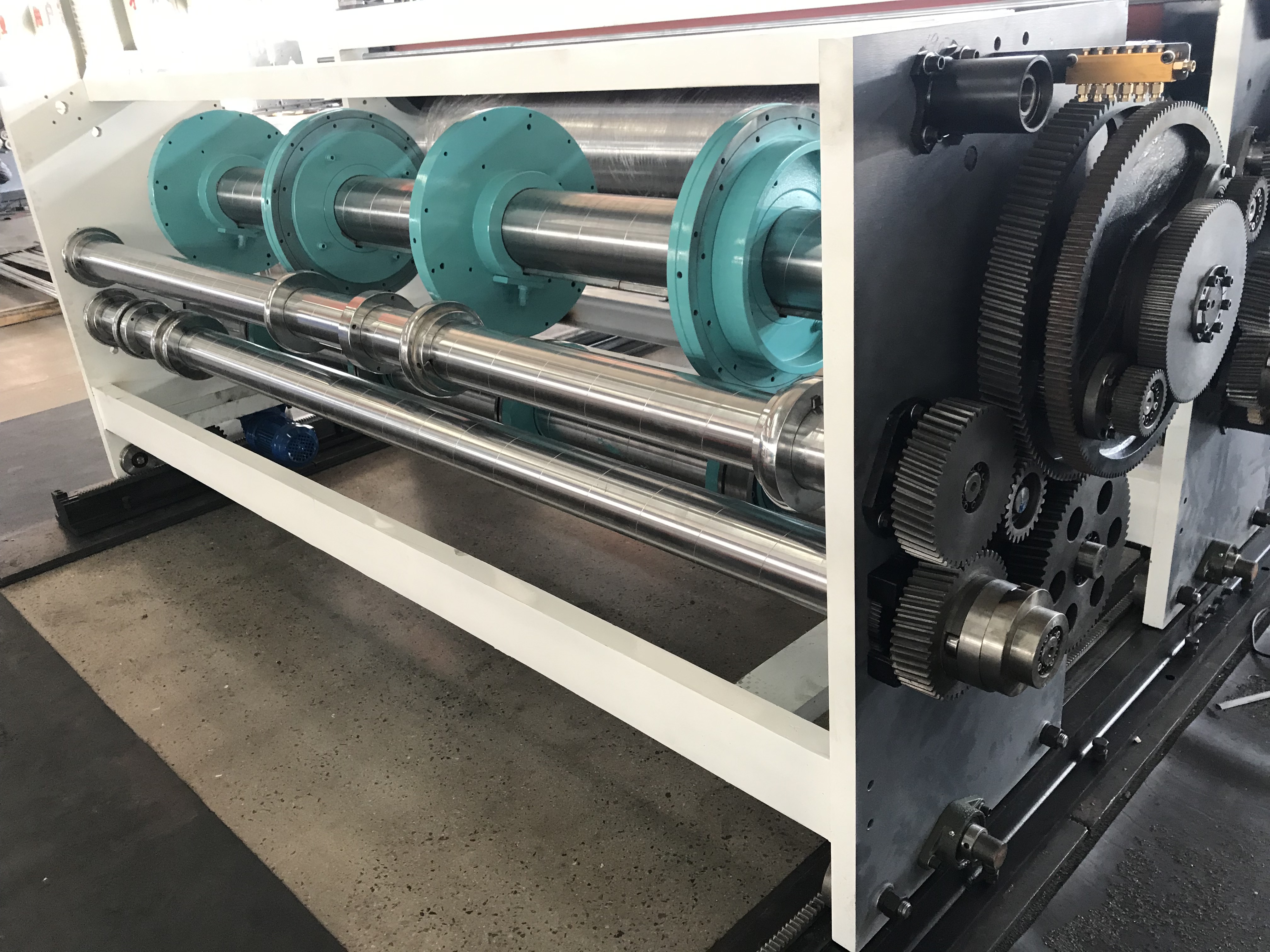

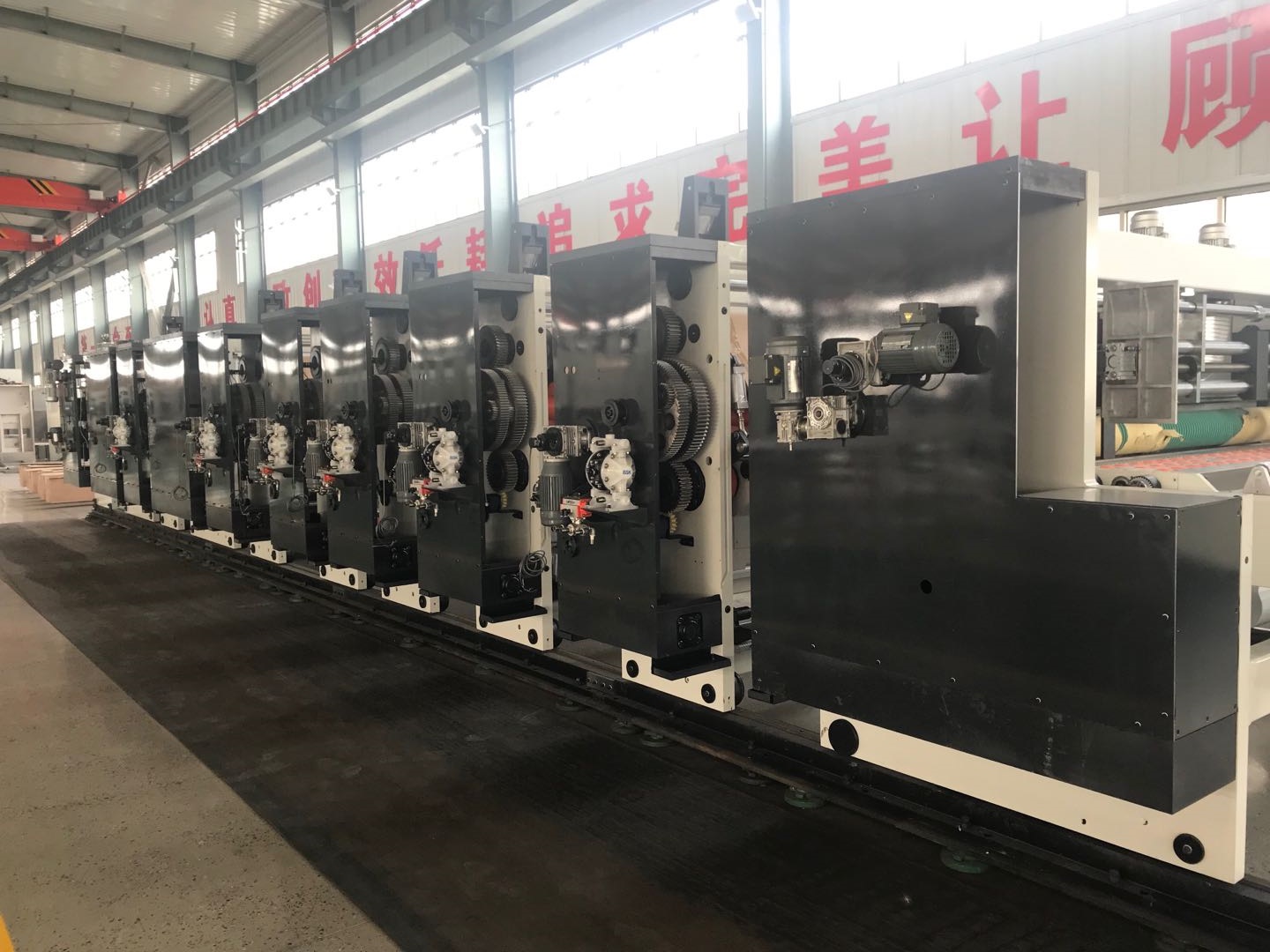

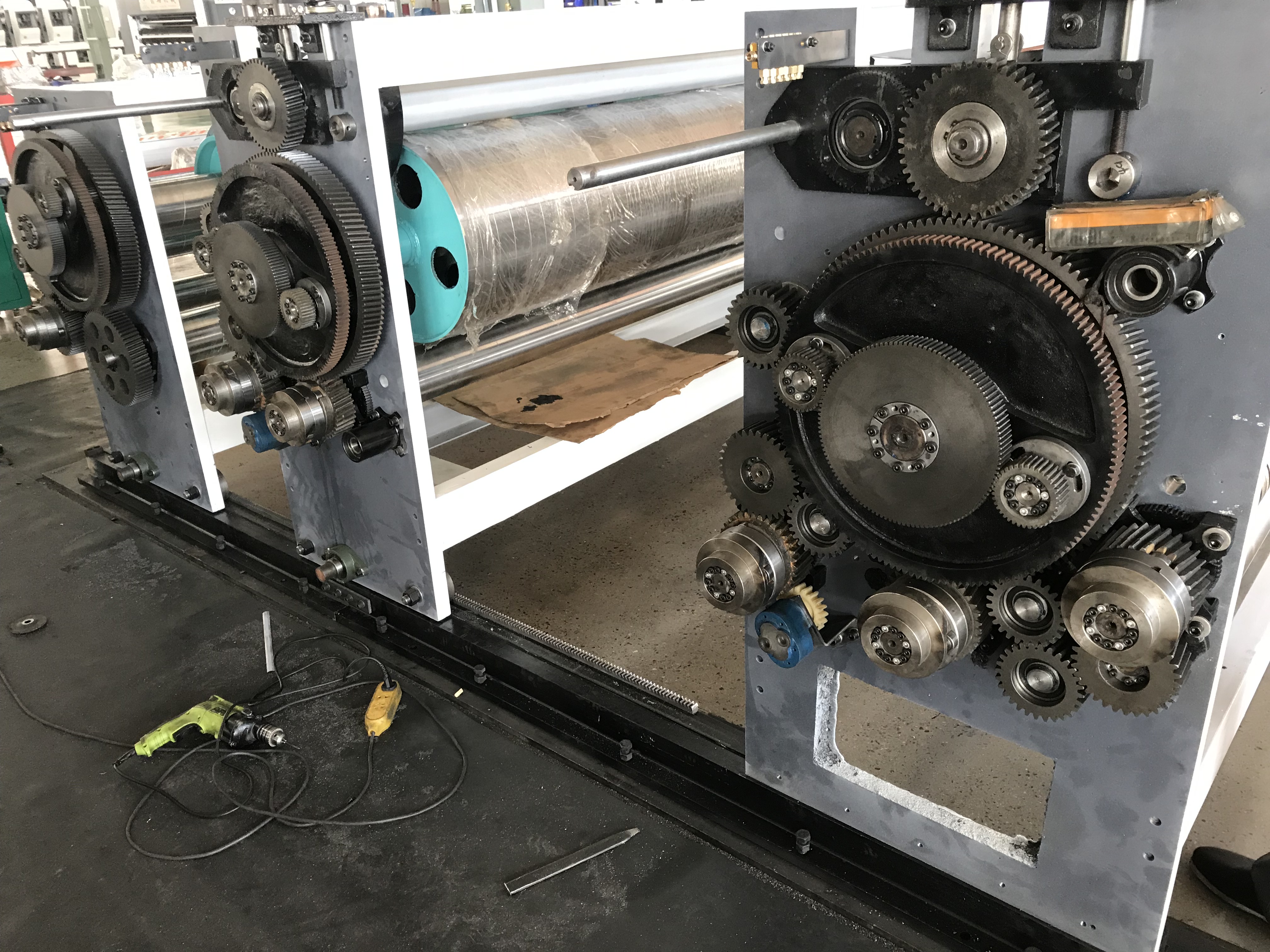

Details Images

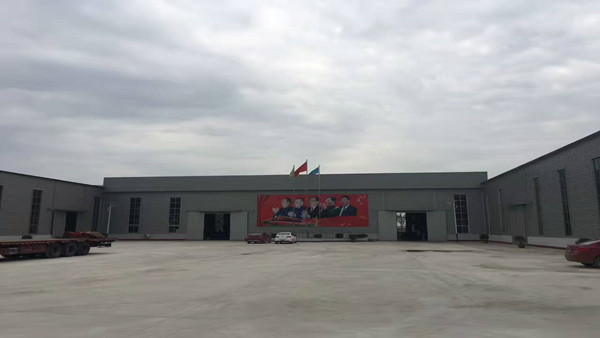

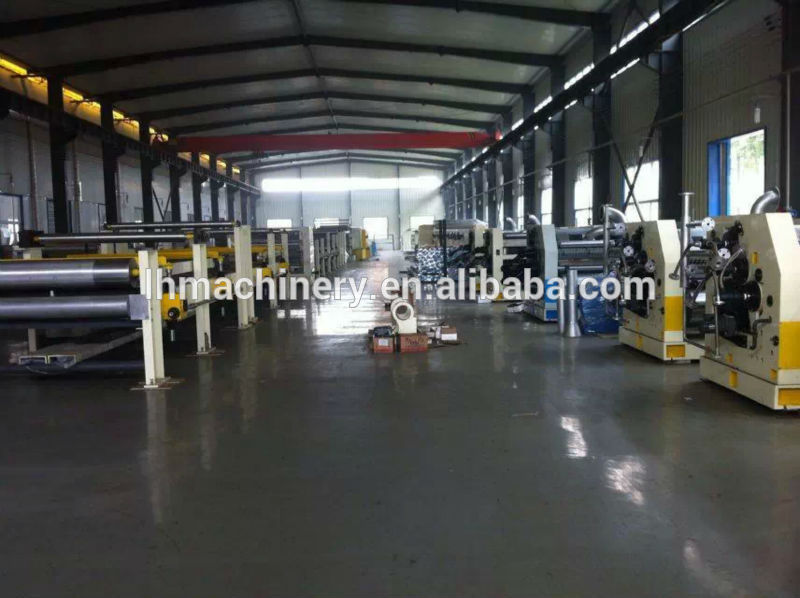

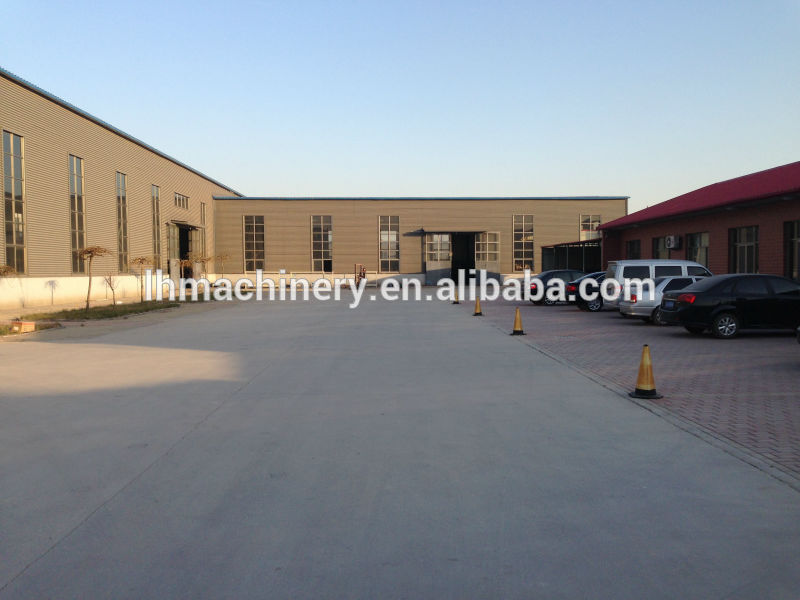

Company Profile

Hebei Liheng Packaging Machinery Co.,Ltd

Hebei Liheng Packaging Machinery Co.,Ltd is specialized in the production of various kinds of carton equipment of the well-know
enterprise.

Factory of over twenty years, we introduced advanced technology at home and abroad, developing and manufacturing products, has
been well received by customers.

We are specialized in producing 3ply, 5ply, 7ply corrugated production line, high speed printing machine, ordinary printing
machine, single facer, rotary die cutter and other corrugated cardboard production equipments.

Products are exported to Russia, the Middle East, Africa, Southeast Asia, EU and other countries and through out the country.
Product quality and enterprise reputation get the high praise at home and abroad.

Over the years the company take "the quality first" "integrity-based" compose always meet users' requirements as our sole purpose,
providing the products with excellent quality, professional technology. Our company is willing to cooperate with domestic and
foreign insight, strive for innovation, coexist win-win, hand in hand altogether will create package future.

Contact me

Mob/Whatsapp/Wechat:0086 18633706098

Our Service

a) The product can pass the carton industry standards.

b) The supplier supplies the paid service. The customer pays the engineers' salary and the cost of round flight tickets and living

and food when installing.

c) The suppliers take the responsibly of installment and help to train the technician, these kinds of cost should be paid by the

customers

d) WARRANTY PERIOD: The guarantee period shall be 24 months counting from delivery date.

e) Whole Life paid service
