Overview

Model No.: 9

Brand: YUYUAN

Place of Origin: China

Specifications

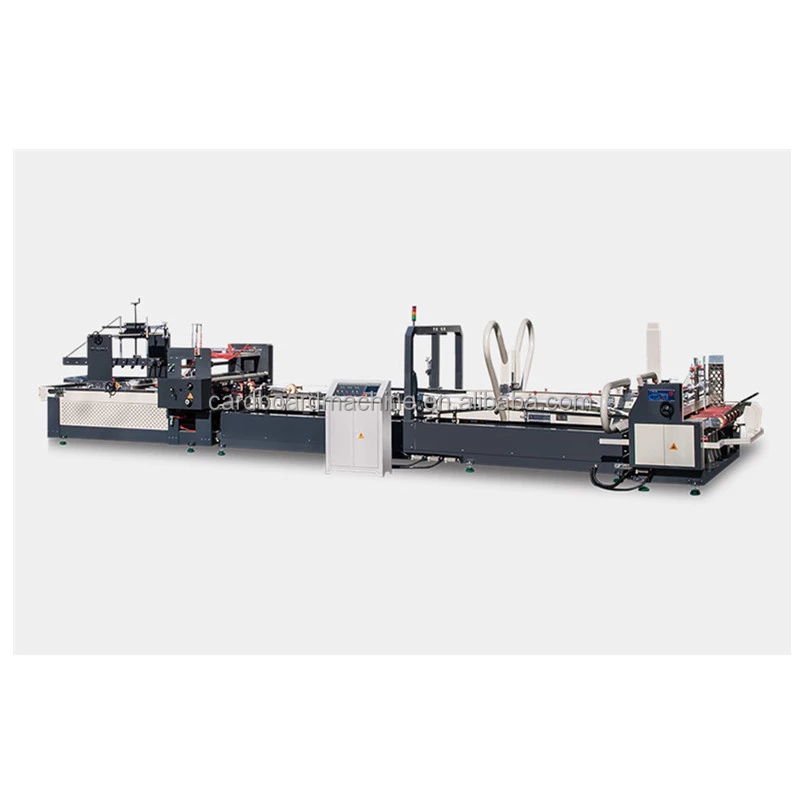

Auto folder gluer carton box folding gluing machine

Full automatic box gluing machine is composed of vacuum paper feeding department, gluing and folding department and counting and stacking output department, digital display control, double frequency conversion synchronous operation, with simple, fast, reliable and accurate control mode.Automatic paper supply, automatic gluing and folding, automatic counting, automatic
stacking and output, average speed of gluing box is 200m/min, high speed, energy saving and labor cost saving.

Model	YY-2300	YY-2600	YY-2800
A	80-880	80-880	80-880
B	600-2320	700-2620	700-2820
C	160-840	160-840	160-840
D	240-1000	260-1150	260-1250
INSTALL AREA	3500*14000	4000*15000	4200*16000
MOTOR POWER	10Kw	12Kw	12·Kw

Model number	YY-2600	YY-2800
Maximum paperboard size(mm)	2300*1000	2600*1000
Minimum paperboard size (mm)	450*170	450*170
Overall size (mm)	1200032001900	1200034001900
Power (kw)	12	12
Weight (kg)	4000	4200

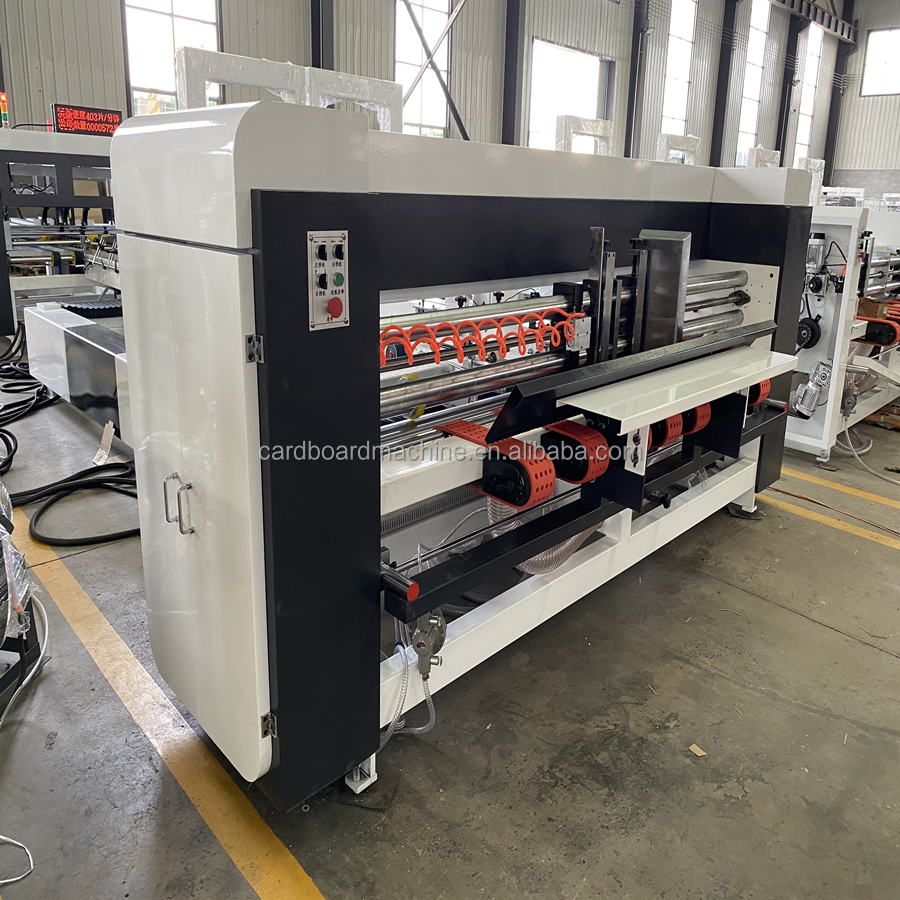

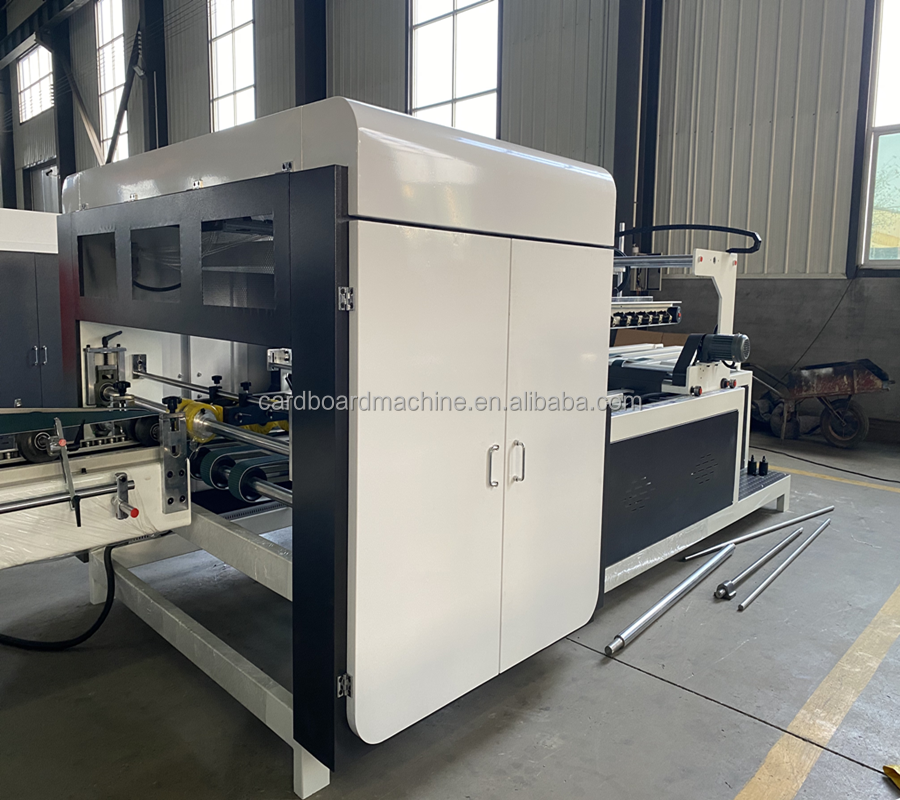

Feeding part

1.Select high-grade electromagnetic clutch and electromagnetic brake system, so that the paper feeding part can be operated single or continuously, effectively control the waste of the paperboard in the specification adjustment and the accuracy of the output paperboard.
2. Suction paper feed.
3. The back gauge paper height is adjustable and can adapt to curved cardboard.

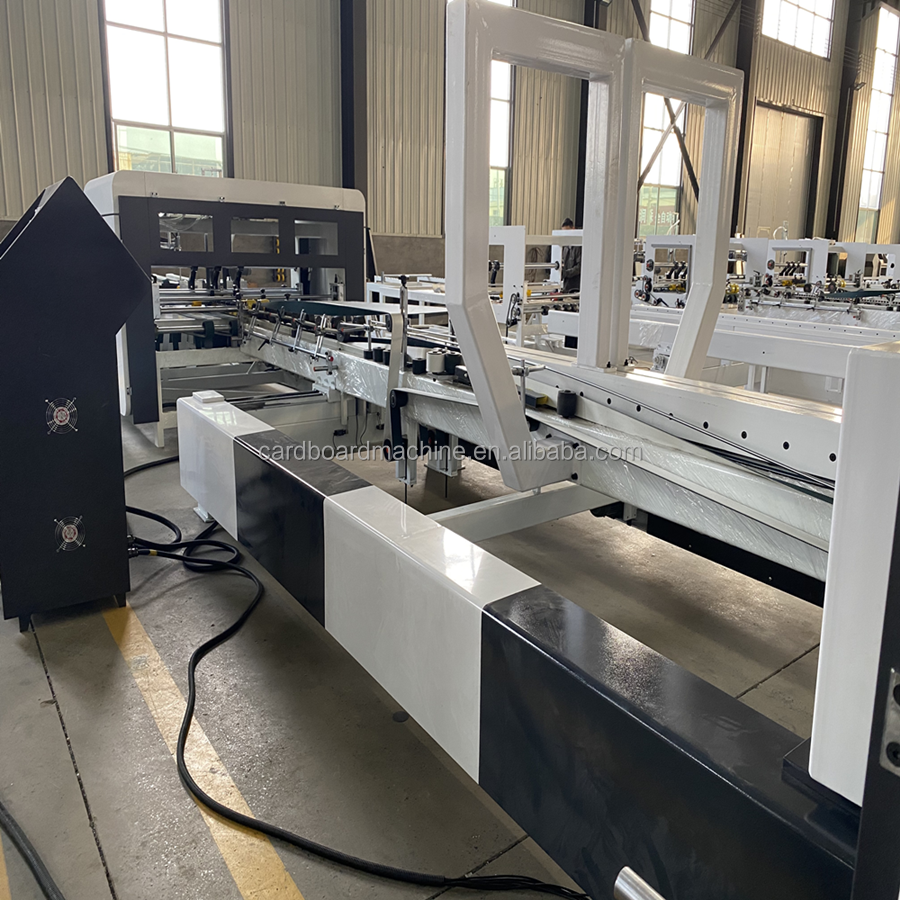

Folding and gluing part

1. The motor is selected from domestic famous brands, with stable performance, convenient speed regulation and no noise pollution.
2. The folding part adopts the seamless butt-shaped endless conveyor belt made of imported high friction and super wear-resistant special materials to complete the automatic folding of the cardboard without any mistakes.
3. The rubber coating part is made of high-quality stainless steel rubberizing wheel, which is evenly coated and energy-efficient.

Correction stacking output part

The automatic calibration and stacking code output unit is equipped with automatic counting, stacking and stacking, and stacking code output. The output of the finished box can be set according to customer requirements, and the correction of the irregularity of the carton is automatically forcibly corrected.

Company Profile

HEBEIYUYUAN Packaging machinery co.,ltd

We are one of the biggest manufacturers for corrugated packaging machinery in North of China. Our main products include complete corrugated paperboard production line, flexo printer slotter die cutter stacker machine, automatic folder gluer and other carton machines. Our company owe perfect technology and we can design machines according to our customers' requirement. We have perfect quality guarantee system .Our engineers have rich experience of installation and serve for our customers all over the world. The Complete
Corrugator Line, Hydraulic Mill Roll Stand, High Speed Single Facer, N. C Cut Off Machine , N.C Slitter Scorer Machine, Folder Gluer Machine, Rotary Slotter Mahcine and Flexo Printer Machine be exported to more than twenty different countries.
We sincerely cooperate with all the customers and do our best to meet all customers' requirements with our best products and service.

Certifications

Our Service

Pre-Sale Service
* Inquiry and consult support.
* Sample testing support.
* Factory inspection.
After-Sale Service
* Train how to install and use the machine.
* Engineers are available to serve overseas.

* video technical support

* online support
* spare parts

* field maintenance and repair service
* field installation,commissioning and training

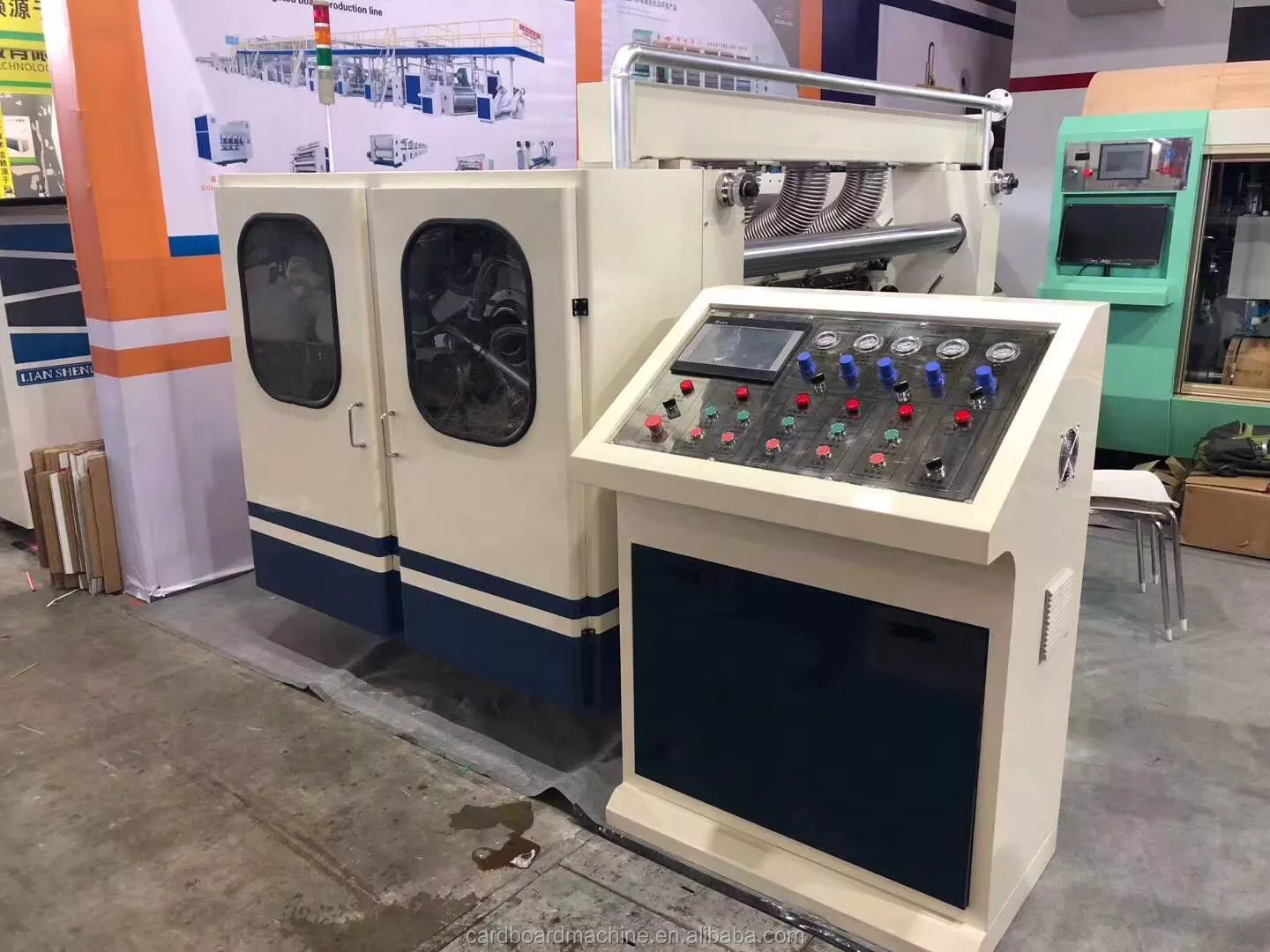

Exhibition

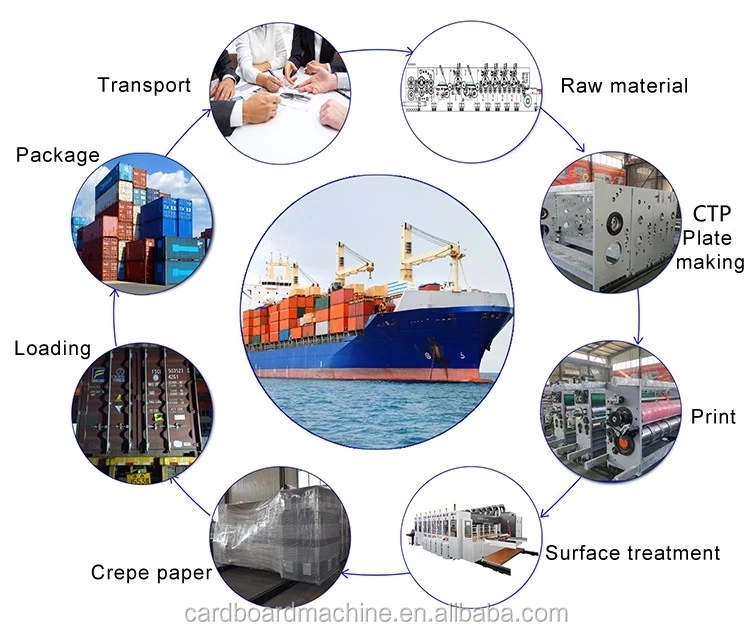

Product packaging

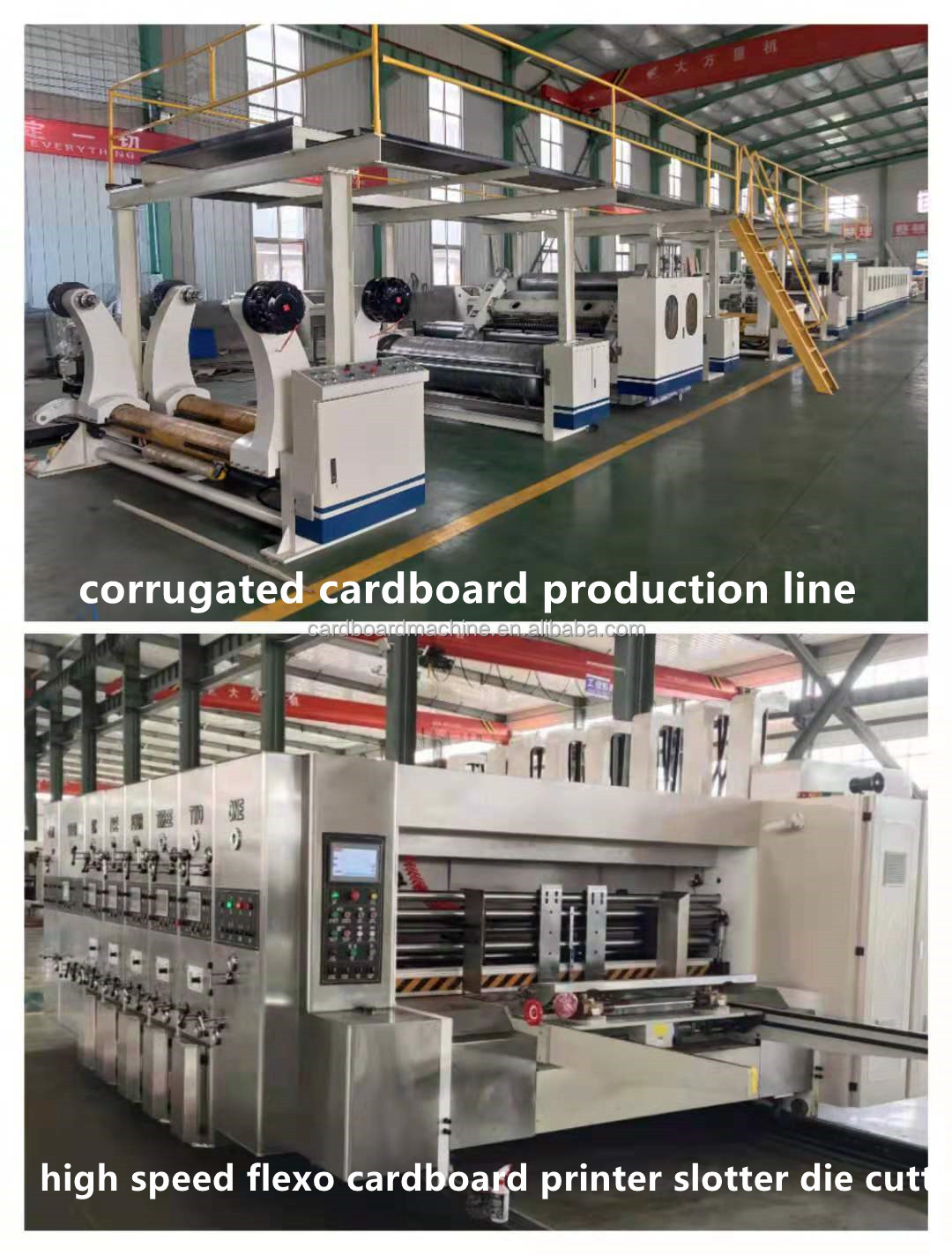

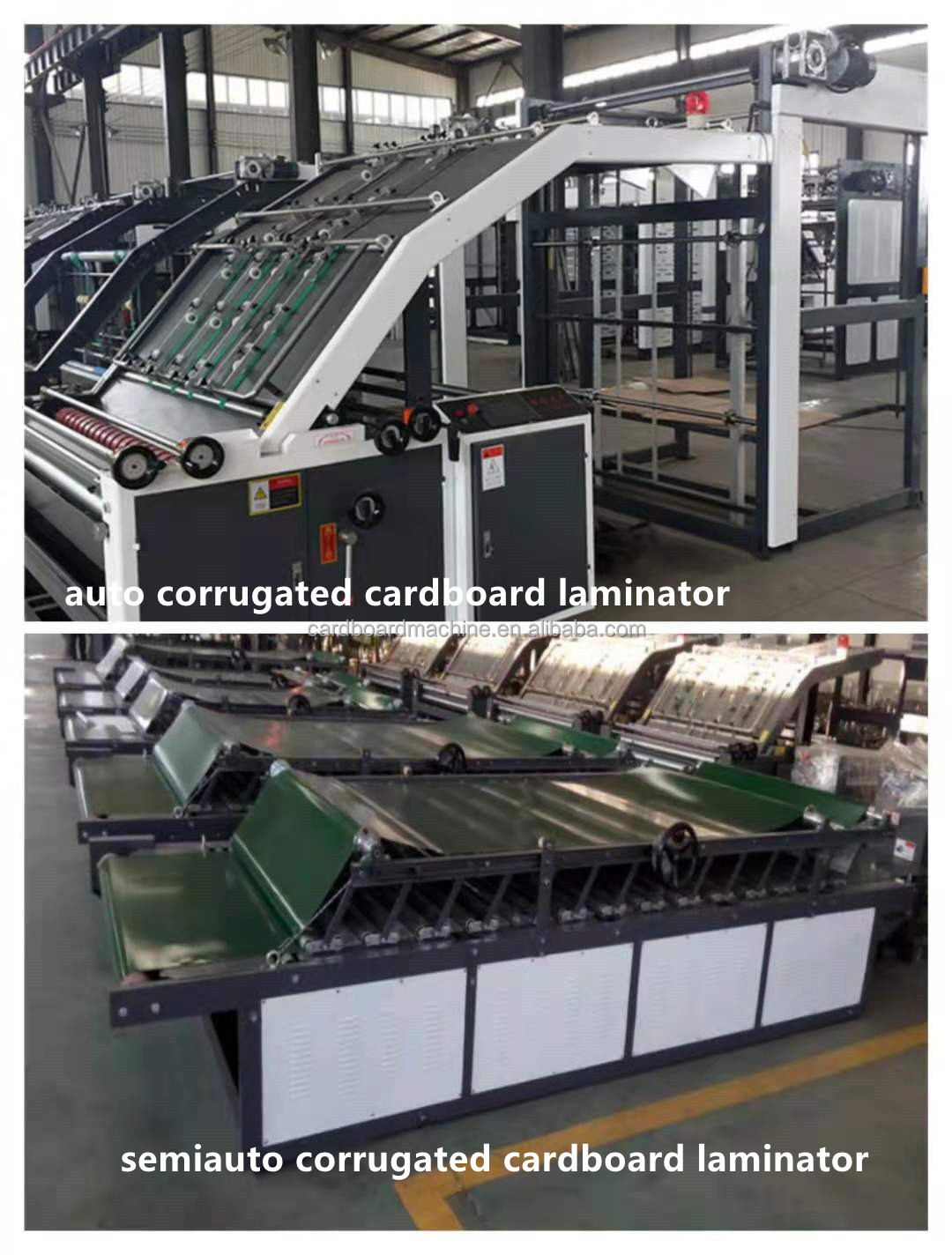

Related Products

FAQ

1.Q:Are you a manufacturer?

A:Yes ,we make all the machines related to corrugated cardboard and cartonbox.

2. Q:Do you have export licence ?

A:Yes ,we have export licence and we can export by ourselves .

3. Q:Where are you located ?

A:We are located in dongguang city ,cangzhou city ,hebei pronvice , China ,

4. Q:How to travel to your city ?

A:Our nearest airport are beijing international airport , and jinan airport , our nearest high speed train station is cangzhou west station.It only takes two and a half hours to my city by car ,and only 1 hour from beijing south station to cangzhou west station by high
speed train .

5. Q:About quality control and delivery?

A:Inhouse inspection and third party inspection. Our delivery time is on time.

6. Q:The process of buying machines from our company ?

Describe your requirements --- quote the price - accpet the price - make the contract -- prepare the machine - check the machine -ship the machine

7. Q: Do you have any working machine for us to visit?

A: Yes,We have running machine near our factory also in our city, so we can arrange the visiting.

8. Q: What is the warranty time of the machine?

A: Our machines have One YEAR WARRANTY. Engineers are available for oversea service.

9. Q:Is it safe on the payment for me as we are the first cooperation?

A: We can do the trade assurance on Alibaba, which will guarantee your products receiving. We also accept other safe payment ways you want.
