Overview

Model No.: 4

Brand: YUYUAN

Place of Origin: China

Specifications

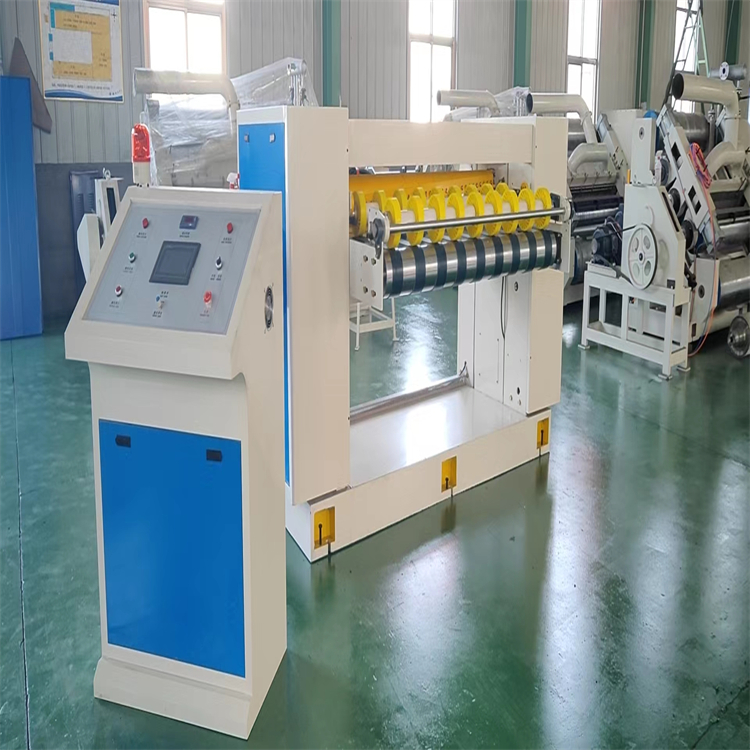

NC cut off :

Function : Effective width :1400mm Design speed : 80m/min-120min Mechanical configuration : slitter and NC straight knife Min cutting length : 300mm Max cutting length : 9999mm Cutting accuracy :±1mm（uniform speed）±1.5mm (non-uniform speed ) Five group ȼ 160 round knife Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator modify or cancel order at Any time. dopt Germany KEB servo system and high performance synchronous Servo motor.

Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life. Host base and machine frame adopt grey cast iron, to keep machine Strong and stable. Adopt 3 section up stacker , the paperboard automatic side delivery after reach setting quantity. Max.stacking length 1.3meters. This machine suitable for offset printing business.

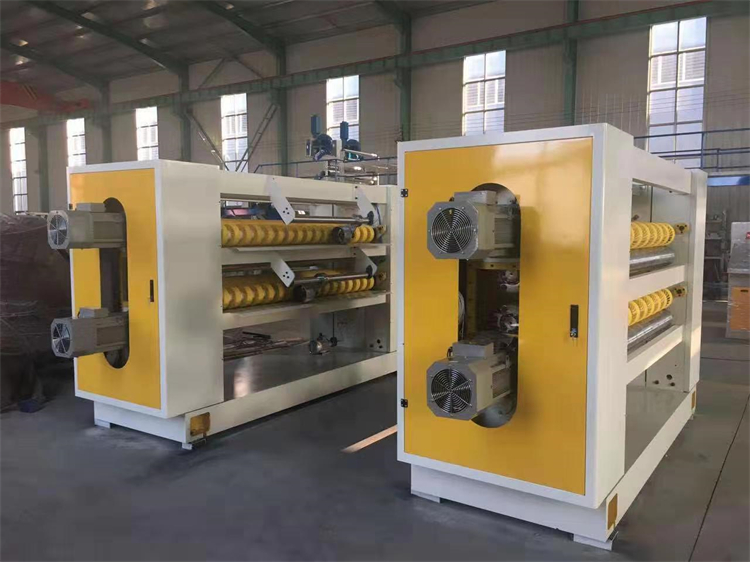

Double layer NC cut off :

Function : Effective width : 2200MM Design speed : 120min Mechanical configuration : slitter and NC Heclial knife Min cutting length : 300mm Max cutting length : 9999mm Cutting accuracy :±1mm（uniform speed）±1.5mm (non-uniform speed ). Five group ȼ 160 round knife . Memory of 200 orders, man-machine interface, the screen displays information available, easy for machine operator modify or cancel order at Any time . Adopt Germany KEB servo system and high-performance synchronous Servo motor. Helical knives structure with HSS knife edge, serration type knife and scissor cutting with less shear force, to keep the knives long life. Host base and machine frame adopt grey cast iron, to keep machine Strong and stable. Adopt 3 section up stacker , the paperboard automatic side delivery after reach setting quantity. Max.stacking length 1.3meters. This machine suitable for offset printing business.

Max. working width	1400mm
Min. working width	900mm
Max. paper mill diameter	1500mm
Max working pneumatic pressure:	0.6-0.9Mpa
Power requirements:	380V, 50Hz
Length of track for carry paper mill	6000mm

Packing & Delivery

Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.
