Overview

Model No.: 5

Brand: YUYUAN

Place of Origin: China

Specifications

MACHINE CHOOSE：

TYPE	Fully Electric	WIDTH（mm）	BLADE-SCORE	Optional
SMBD	QDDSJ	1800 2200 2500	4-6 5-8 6-10 7-12	Waste paper Suction

TECHNICAL INDEX：

Model	2000	2400	2700
Max slitting size（mm）	1850	2250	2550
Min slitting size（mm）	130
Min scorer width（mm）	130
Scorer height（mm）	0-12
Blade size（mm）	260*158
Blade/scorer	4/6 , 5/8 , 6/10 , 7/12
Machine dimension	283012602000(mm)	313012602000(mm)	333012602000(mm)
Power	8.5kw	10kw	12kw

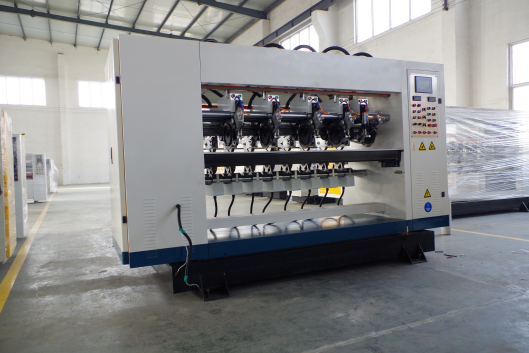

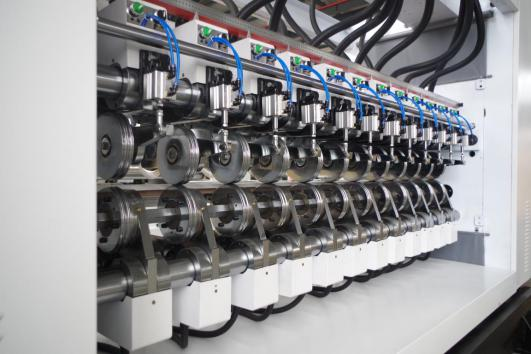

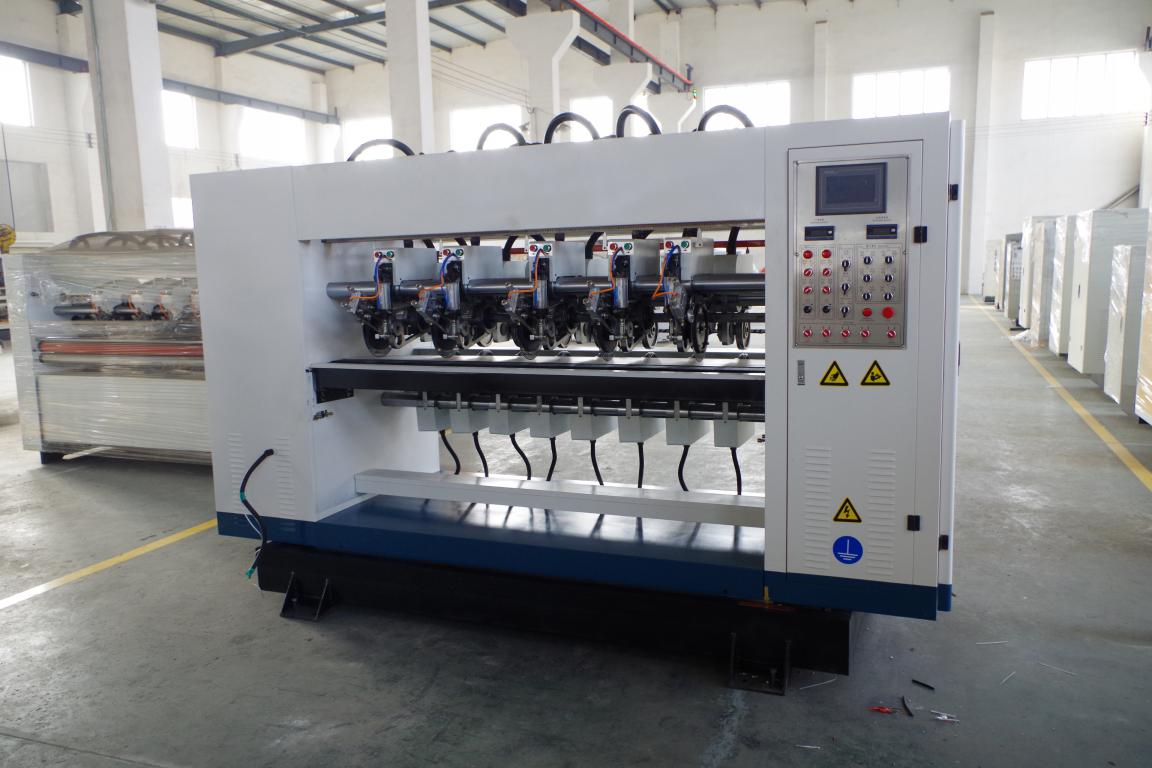

Machine Pictures:

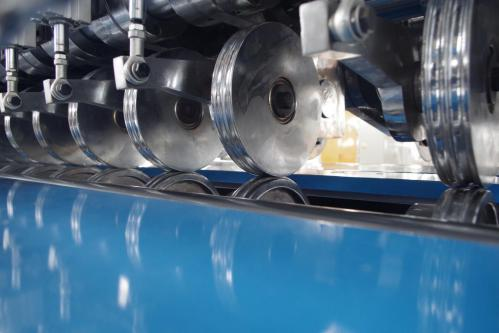

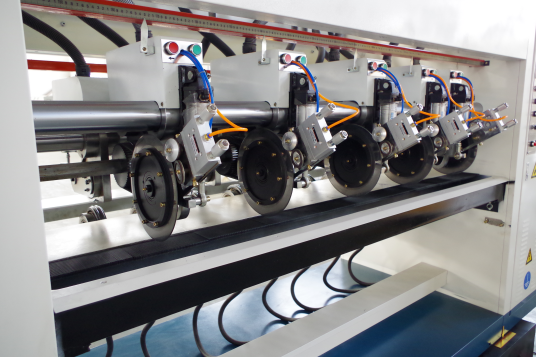

The space between slitting blades is electrically adjusted,automatic locking,improved working efficiency.

Alloyed steel thin-blades,sharp and long life of over 800 million meters,auto sharpening.automatic grinding.

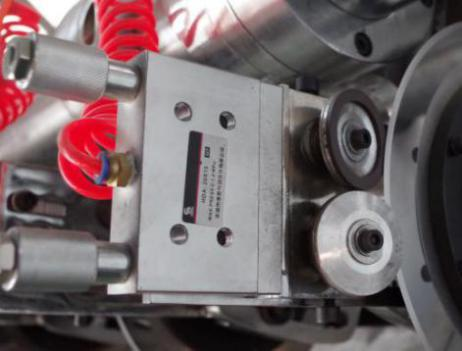

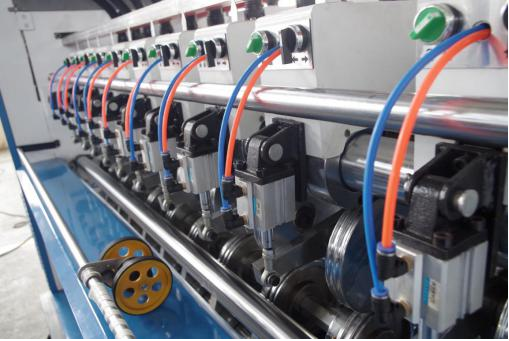

Scorer pneumatic lifting,Overall adjustment indentation depth.Scorer adopt high quality steel,improve service life.

Function and characteristic:

The space between slitting blades is electrically adjusted,automatic locking,improve work efficiency. Blade electric adjusted type adopt auto locking,double smooth shaft guide way,sturdy and durable. Using the synchronous belt transmission,low noise. Taiwan Delta colorful touch screen,simple operation. Adopt computer control automatic or manual grinding. The control system is composed of high performance and double frequency converter,energy saving,stable and reliable. Keep the synchronous speed with the production line automatically. Patent type passive grinding,compact structure,can work while sharpening,improve work efficiency.

Packing & Delivery

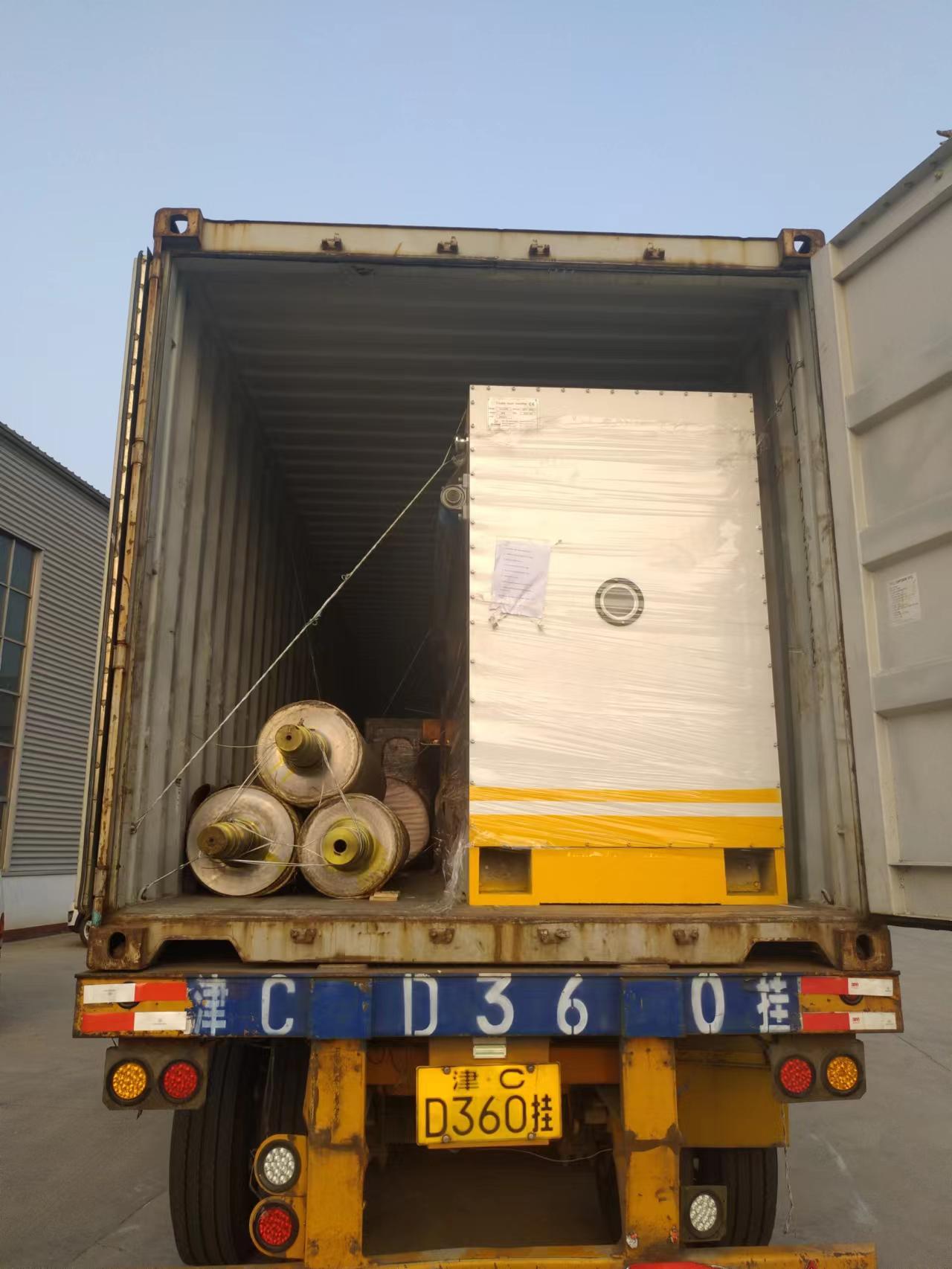

Plastic film packaging machines. With wire and the machine is fixed to the container. When the container operations and surface bumps, the machine will not shake in the container.

Company Profile

Hebei LIHENG Packaging machinery Co.,LTD, located at DONGGUANG county economic development zone east. Beilian jingjin, south by shandong, with cangzhou iron lion, wuqiao acrobatic world adjacent; The beijing-shanghai railway, 104 national highway and beijing-fuzhou expressway adjacent to it, has convenient transportation and excellent production environment.
Our factory specializing in the production of all kinds printing machine and a complete set of packaging machinery and equipment, with independent development and research ability, to achieve sustainable development of high-tech equipment level, and constantly improve the deficiency existing in international and domestic packaging machinery and equipment, to the production of high-speed, durable, energy saving, consumption reduction, the safety of automated machinery and equipment. Enterprise recruitment of talent, strong technical force, with high-tech design, sophisticated production equipment, advanced detection means, strict quality management system and a skilled production team, in order to ensure the quality of the product performance has laid a solid foundation.
Over the years, enterprises follow the "innovation, the pursuit of excellence, frolic in the waves waves, have the courage to
lead," the purpose, make the product quality improved steadily. And has a reputation for timely delivery and thoughtful service well received by new and old customers.
I plant to the revitalization of China's packaging industry as own duty, sincerely cooperate with the masses of users. In the
future, we will be quality products and perfect after-sales service to meet customers needs.

FAQ

1. who are we?
We are based in Hebei, China, start from 2017,sell to Domestic Market(20.00%),South America(15.00%),Eastern Europe(15.00%),South Asia(10.00%),Africa(8.00%),Eastern Asia(8.00%),Southeast Asia(7.00%),Mid East(7.00%),North America(5.00%),Oceania(5.00%). There are total about 11-50 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Corrugated Cardboard Production Line/Printer Slotter Die Cutting Machine/Folder Gluer

4. why should you buy from us not from other suppliers?
Cangzhou Yuyuan IMP&EXP CO.,LTD is a academician of Chinese Packaging Technic Association.Our company specializes in discovery, development and production of paper board production line, automatic flexo ink printing slotting die cutting machine, automatic

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,DEQ,DDP,DDU,Express Delivery,DAF；
Accepted Payment Currency:USD,EUR,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Escrow;
Language Spoken:English,Chinese
