Model No.: SF-280/320/360 | Brand: YuYuan | Place of Origin: China |

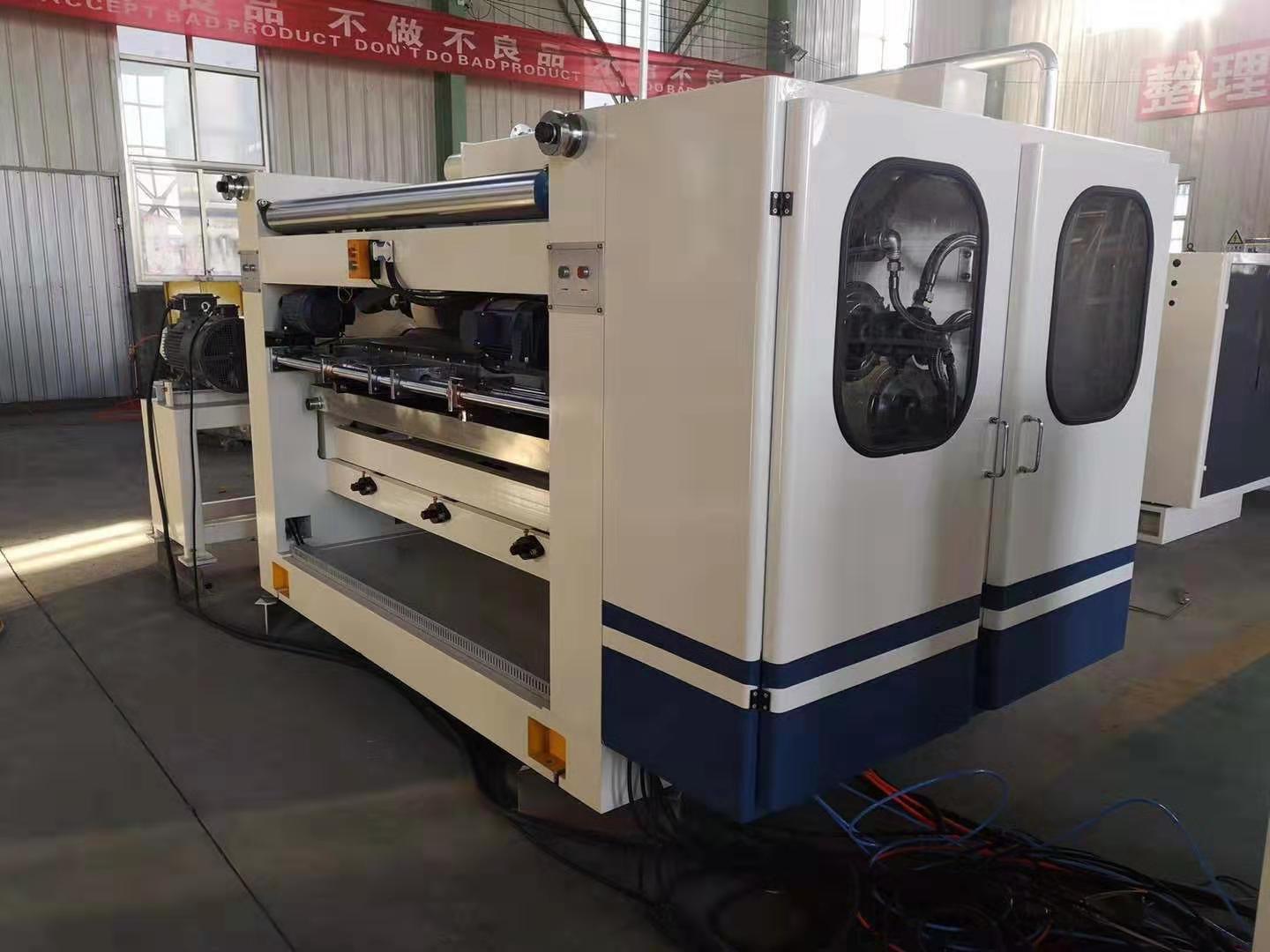

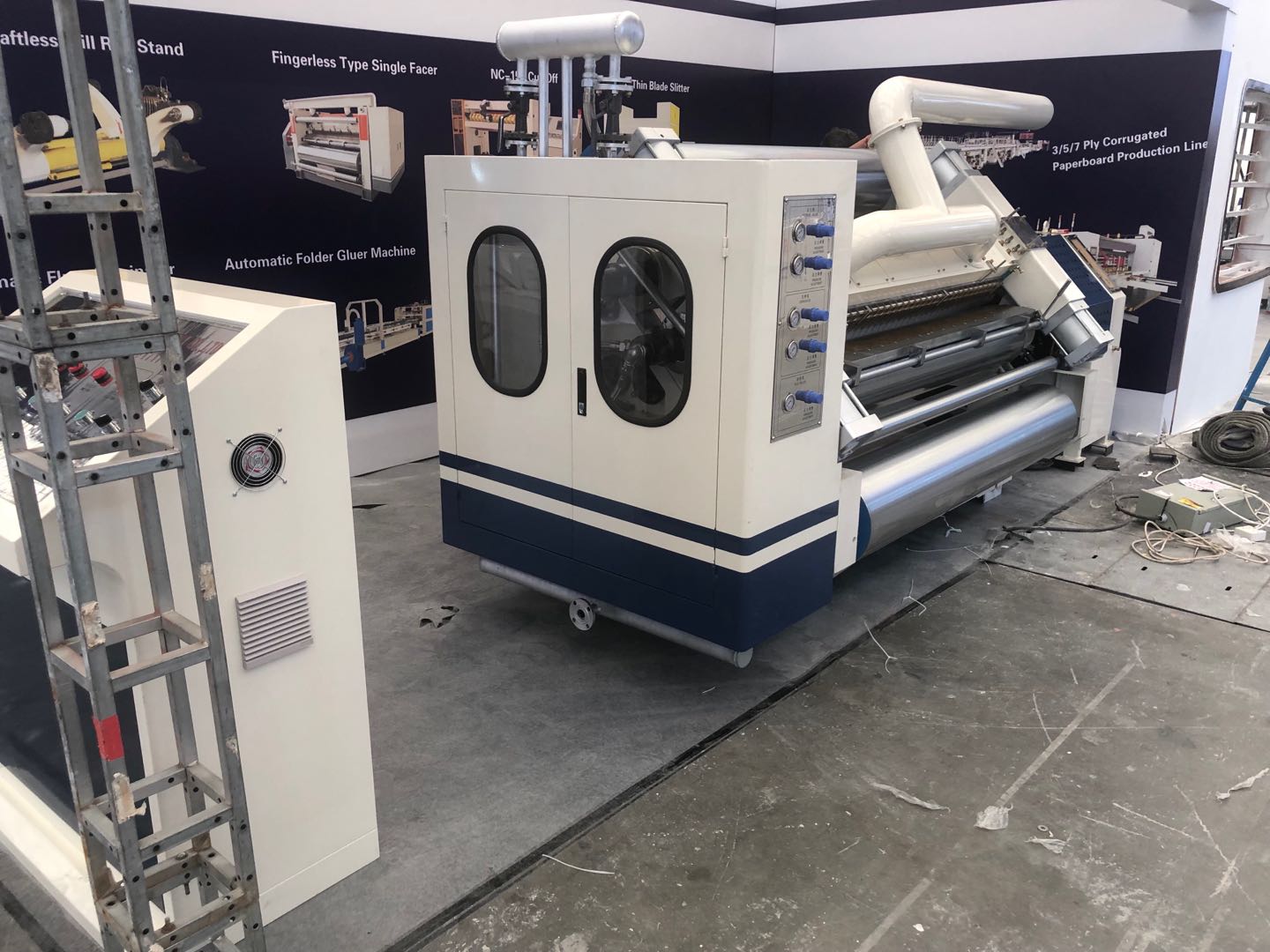

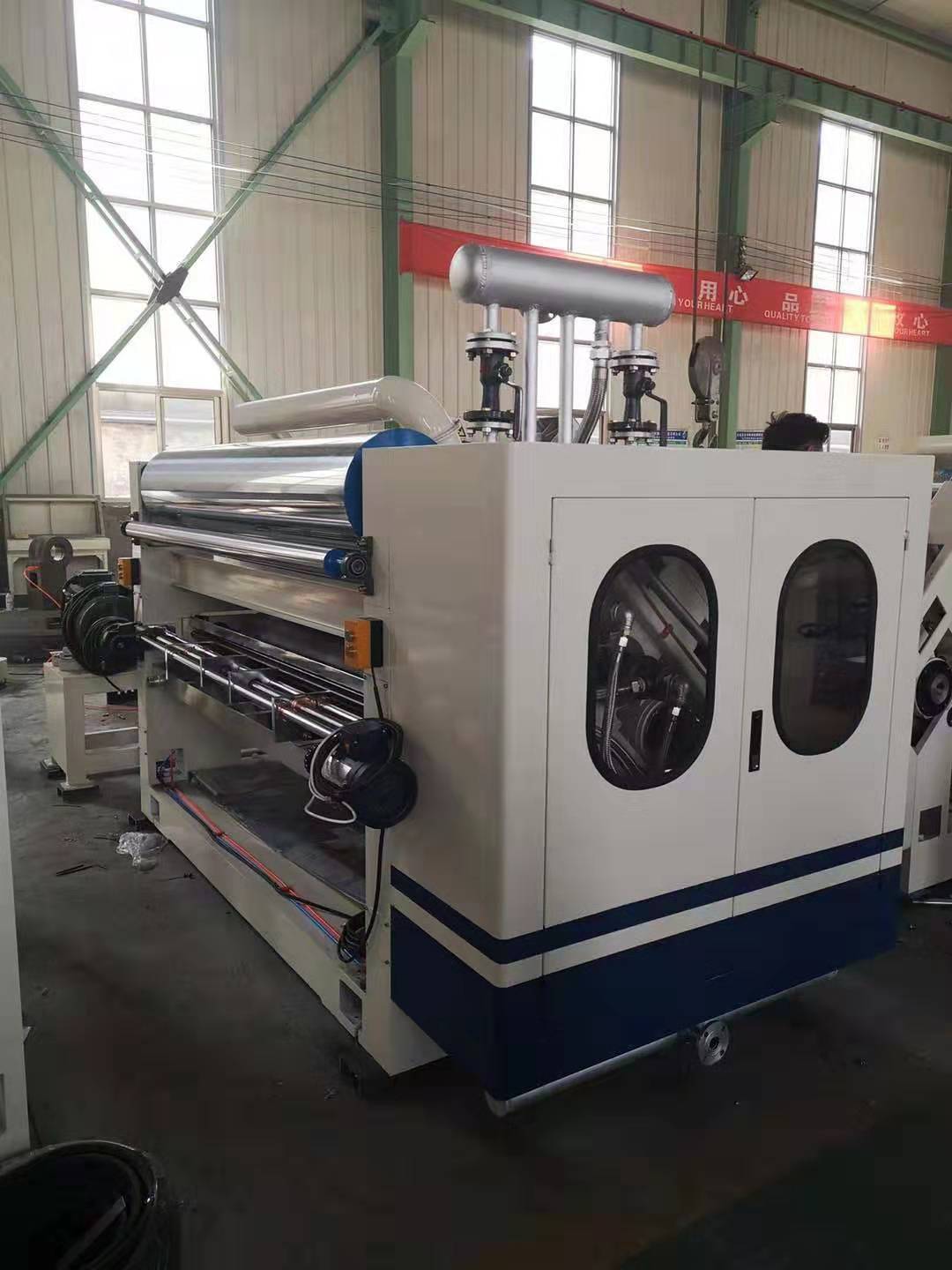

Heavy type Cardboard Single Facer corrugated machine
Specification:
Max. machine speed |
100m/min |
Economic speed |
60m/min |
Max. working width |
1600mm |
Max working steam pressure: |
1.0-1.3Mpa |
Steam temperature |
160—210 centigrade |
Power requirements: |
380V, 50Hz |
Diameter of corrugated roller |
280mm |
Diameter of Press roller . |
28mm. |
Diameter of preheater roller |
300mm |
Diameter of Glue roller |
215mm |
Diameter of doctor roller |
105mm |
Machine Introduction:
*Design speed: 120m/min.
*Corrugated rollers made of 48CrMo alloy steel, with heat treatment for hardness HRC58-60, surface plated with chrome treatment.
*corrugating roller: Dia.320mm with a drum.
*Press roller: Dia.325mm. with drum.
* Vacuum suction Fingerless design provides perfect flute formation in high speed manufacturing.
* Gimbal driver system. Individual immersion oil gear type drive box, separating dynamic vibrations improve running stability, easy and fast for maintenance.
*Gluing roller: surface is embossed with netting design and chrome plated.
*Adjustment of upper corrugated roller, pressure roller and glue roller controlled by pneumatic system.
*With preheating and preconditioning rollers.
Packaging & Shipping
Our Services
a) The product can pass the carton industry standards.
b) The supplier supplies the paid service. The customer pays the engineers’ salary and the cost of round flight tickets and living and food when installing.
c) The suppliers take the responsibly of installment and help to train the technician, these kinds of cost should be paid by the customers
d) WARRANTY PERIOD: The guarantee period shall be 24 months counting from delivery date.
e) Whole Life paid service
